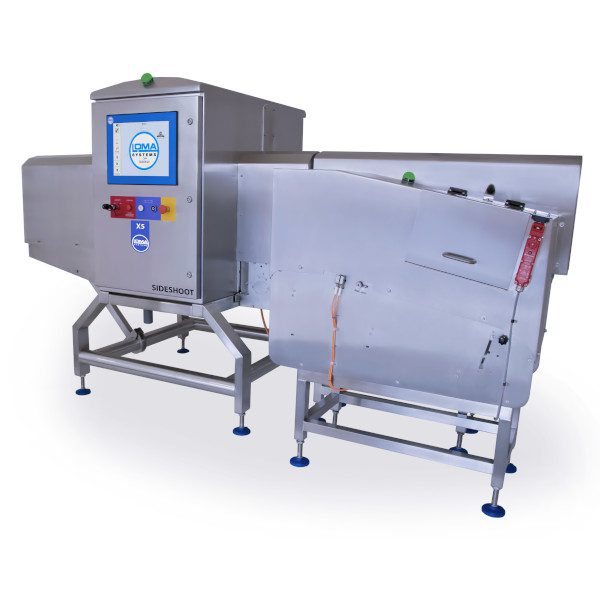

Loma X5 SideShoot X-ray System


The X-ray inspection system for side-view checking of vertical products

Why Choose the Loma X5 SideShoot X-ray System



goal icon

The Loma X5 X-ray inspection system is the ideal solution for plastic bottles, aluminium cans, paper and cardboard tubes, glass jars, and for products where vertical beam X-ray systems are less effective.

system entry icon

The system is engineered with several options to ensure safe product transfer and straightforward line integration, minimizing any product handling issues.

data entry icon

Loma X5 SideShoot comes with an intuitive color touch-screen interface featuring icon controls and multi-level password access.

Technical Information

Surface finish 304 brushed stainless steel
System height (mm) 750 | 800 | 850 | 900 | 950 | 1000 | 1050 |1100
Maximum product height 265 mm
Maximum product length 150 mm
Maximum product width 140 mm
X-ray output 210 W (60 kV 3.5 mA)
Protection rating IP66
Reject types signal only
Conveyor width 150 mm
Maximum weight 350 g
Speed 10-50 m/min
Options reject confirmation, full basket, X-ray detector, remote support, LomaEnet, multi-lane inspection
Power supply 110/120 V, 1 ph, 60 Hz, N & E, 10 A – 220/230 V, 1 ph, 50 Hz, N & E, 5 A
Cooling devices vortex (pneumatic cooling device) or optional air conditioner
Operating environment 2 – 25 °C (vortex) – 2 – 35 °C (air conditioner) – below 10 °C, cabinet heater
X-ray emissions emissions below 1 μSv/h
Reporting events, batches, PVS
Data retrieval USB, Ethernet, TRACS
