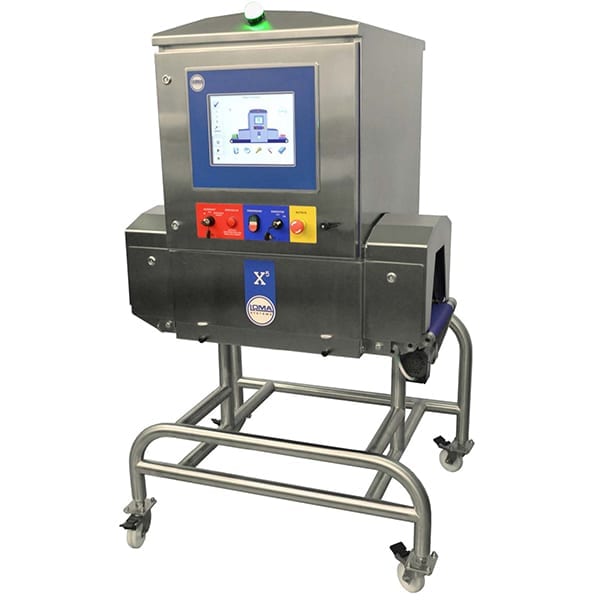

Loma X5 Space Saver X-ray System


The low-power, space saver x-ray inspection solution for the food and packaging sector

Why Choose the Loma X5 Space Saver X-ray System



icona raggiungimento obbiettivi

Opting for the Loma X5 Space Saver means relying on a solution that is highly versatile: built-in algorithms can simultaneously check and verify various properties across multiple product and packaging formats.

icona integrazione

This x-ray inspection solution is fully cleanable, with a rounded stainless steel frame that’s easy to wash and prevents the build-up of dirt.

icona integrazione 2

The Loma X5 Space Saver X-ray System is also user-friendly: its touchscreen interface greatly simplifies setup and daily operation, while automatic product learning ensures top-level sensitivity with no manual adjustments required.

Technical Information

Frame AISI 304 stainless steel
Production line height 900 mm ± 50 mm (other sizes available on request)
System length 1,000 mm
Inspection width 300/500 mm
Maximum weight capacity 25 kg
Power supply voltage 230 / 1 ph / 50 Hz or 110 / 1 ph / 60 Hz N+E
Compressed air from 5 to 8 bar
Types of reject device signal only
Dust/moisture protection rating IP66 standard, NEMA 4X
Belt types foodgrade belt
Included in delivery quick-release belt – detection of contaminants – inspection of volume, shape, and size – product absence detection – acquired image storage – variable speed
Optional features Reject confirmation, Full bin, X-ray detector, Remote support, LomaEnet, multi-line inspection
Adaptive Array Technology (AAT) allows selection of inspection diode size (0.4 – 0.8 – 1.6 mm) for optimal performance at any time
Industrial PC with Windows embedded operating system
Cooling system WASC (Wide Angle, Self Cooled) digitally managed to keep X-ray tube performance constant (tube lifespan: 7 to 10 years)
Password protected access yes
Image/report storage on USB or Ethernet yes
Advanced diagnostics with system event log yes
Information dashboard system usage monitoring (operating hours, start-up hours, etc.)
Reject signal management
– multiple causes (e.g. contaminants detected, product defects, etc.)
– multi-line inspection (up to 6 available signals)
