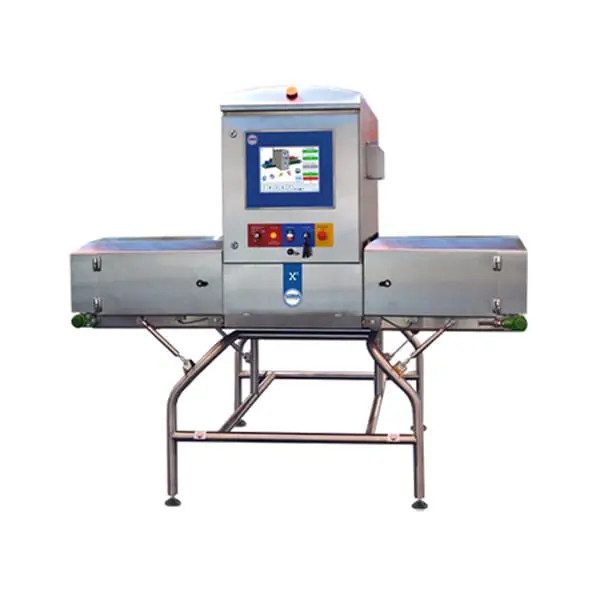

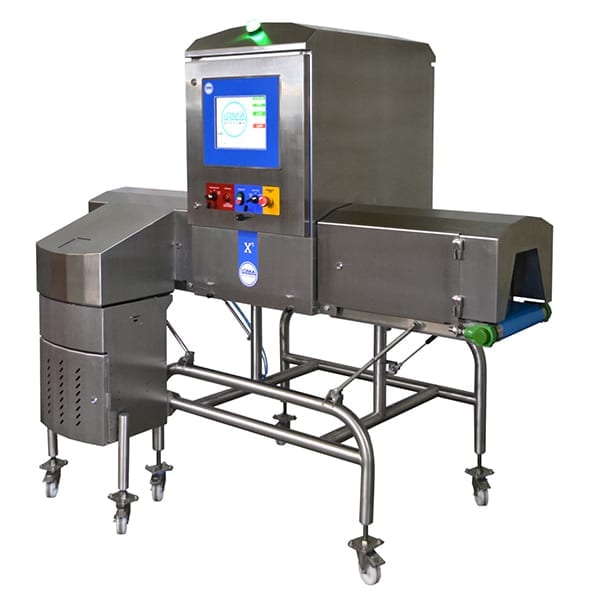

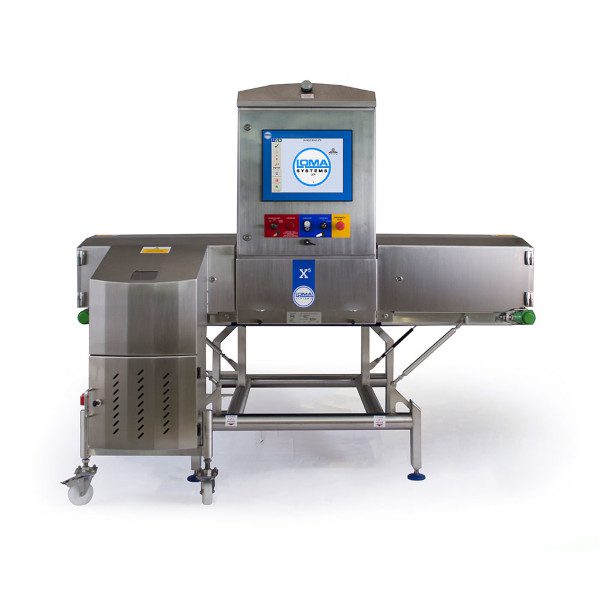

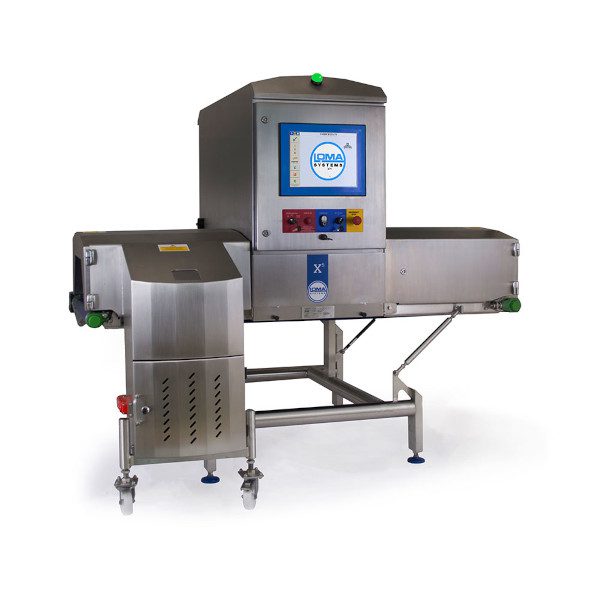

Loma X5 Pack X-ray System


The x-ray inspection system for the food and packaging industry

Why choose the Loma X5 Pack X-ray system

icon data input

Automatic product learning ensures the highest sensitivity without operator intervention, while the touchscreen interface makes setup and operation simple.

icon eco friendly

The Loma X5 Pack X-ray system features a new x-ray source (18W Eco Mode) that reduces both environmental impact and energy usage.

icon speed

The technological advancements introduced with the X5 model guarantee long-lasting efficiency and reliability.

Technical Information

Frame AISI 304 Stainless Steel
Production line height 900 mm ± 50 mm (other sizes upon request)
System length 2,000 mm
Inspection width 300/500/600 mm
Maximum weight capacity 25 kg
Power supply 230 / 1 ph / 50 Hz or 110 / 1 ph / 60 Hz N+E
Compressed air from 5 to 8 bar
Types of rejectors signal only, single or double air jet, side pusher
Dust/moisture protection grade IP66 standard, NEMA 4X
Belt types foodgrade conveyor
Included features quick-release conveyor – contaminant detection – volume, shape, and size inspection – product absence detection – image archive – variable speed
Options reject confirmation, full bin, X-ray detector, remote assistance, LomaEnet, multi-lane inspection
AAT Technology (Adaptive Array Technology) allows selection of inspection diode size (0.4 – 0.8 – 1.6 mm) to ensure peak performance at any time
Industrial PC with embedded Windows OS
WASC cooling system (Wide Angle, Self Cooled) digitally controlled to keep x-ray tube performance stable (estimated tube life 7–10 years)
Password-protected access yes
Report and image saving via USB or Ethernet yes
Advanced diagnostics with event logging yes
Information dashboard system usage monitoring (operating hours, power-on hours, etc.)
Reject signal management
– multiple causes (e.g. contaminant detection, product defects, etc.)
– multi-lane inspection (up to 6 available signals)
