Loma CW3 – X5C Combined System


The solution that merges X-ray inspection with dynamic checkweighing to detect contaminants and prevent product waste

Why Choose the Loma CW3 – X5C Combined System

interconnections icon

Loma combined systems allow you to rely on a single supplier for spare parts, technical support, and additional services for your inspection and quality control needs, helping you save time and access all the assistance you require.

entry icon systems i&c

By using a combined system for product inspection, you reduce your line footprint by around 25%.

goal achievement icon

Loma’s combined solutions make data management, installation, and servicing easier, providing you with a single critical control point to enhance product quality and streamline your processes.

Technical Information

Weight range (g) – MID/R51 compliant 50 – 100*
Weight range (g) – Not MID/R51 compliant 10 – 1500*
Frame construction Brushed stainless steel 304
Height options (mm) 700 – 1000mm
Line length 3113 mm
Product height 110 mm (maximum recommended)
Product length 280 mm (maximum recommended)
Product width 280 mm (maximum recommended)
X-ray output 80 W (40kV 2 mA)
Maximum speed 5-75m/min
Power requirements 2 x 110 or 230 V, single phase 50/60Hz, neutral and earth
Air 5 to 8 bar 72-116 Psi
Cooling system Vortex
Temperature range 10 to 35°C with Vortex cooling system (2 to 10°C with cabinet heating enabled)
X-ray safety leakage less than 1 µSv/h
IP rating IP66
Detection algorithms 2 x contaminants, 3 x object inspection, 2 x image optimization
Conveyor type Antistatic PU
PVS enabled yes
Average accuracy (g) 0.18*
Reporting data Batch, Shift
Data management USB, Ethernet, TRACS

*A higher weight capacity is available depending on the packed item.

All components are lead-free.

Detects metals, bone, glass, and dense plastic with automatic rejection of contaminated products.

The Loma CW3 checkweigher complies with OIML R51 and MID Directive (EC TAC).

Single touchscreen for simplified operation.

Simplified production processes, installation and support from a single supplier, only one critical control point.

Data entry and extraction via USB in compliance with HACCP and Retail standards.

Multi-level password protection for secure login and product traceability (CFR21 part11).

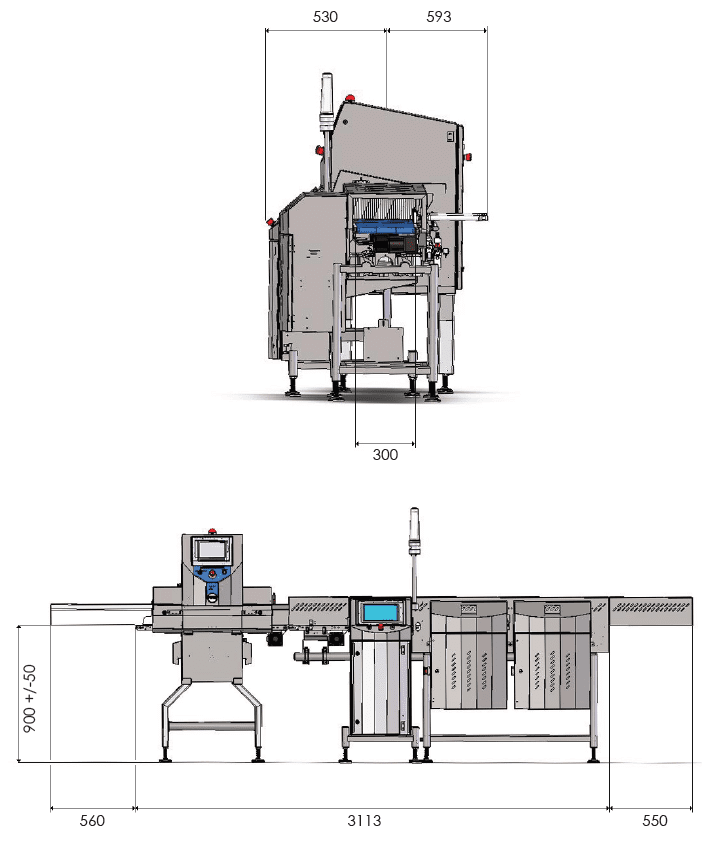

CW3 X5C Combined System Specifications
