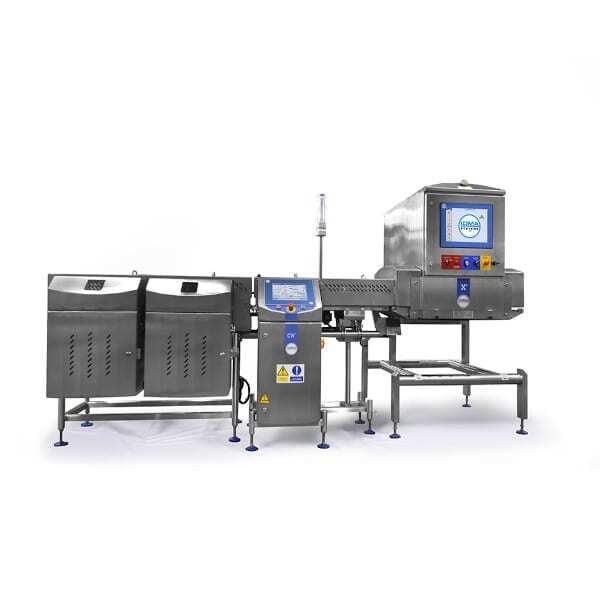

Loma CW3 – X5 Compact Combination System


The solution that merges x-ray inspection and checkweighing, occupying the least possible space

Why Choose the Loma CW3 – X5 Compact Combination System

target icon

The Loma CW3 – X5 Compact Combination System is the perfect choice for food inspection such as: ready meals, baked goods, seafood, fruits, vegetables, snacks, meat, and poultry.



intuitiveness icon

A single touchscreen makes operation easy. Simplified production processes, installation and support from a single supplier, one critical control point. Data can be input and exported via USB in compliance with HACCP and Retail standards.



compliance icon

The components of the Loma CW3 – X5 Compact Combination System are lead-free. The x-ray module is the ideal solution for detecting metals, bones, glass, and dense plastics, with automatic rejection of contaminated items, while the Loma CW3 checkweigher complies with OIML R51 and MID Directive (EC TAC).



Technical Information

Weight range (g) MID/R51 compliant 50 – 6000*
Weight range (g) non MID/R51 compliant 20 – 6000*
Average accuracy (g) 0.30*
Construction materials Brushed 304 stainless steel
Height options (mm) 700 – 1000mm
Line length 3365 mm
X-ray output 80 W (40kV 2 mA)
Maximum speed 20-75m/min
Power requirements 2 x 110 or 230 V, single phase 50/60Hz, neutral and earth
Air 5 to 8 bar 72-116 Psi
Cooling Vortex or AC cooling
Temperature range (standard Vortex) 2 to 10°C with cabinet heating enabled (10 to 25°C with Vortex)
Temperature range (AC cooling option) 25 to 35°C with AC cooling (cabinet reduced to NEMA 4X with AC option)
X-ray safety leakage below 1 µSv/h
IP rating IP66
Detection algorithms 15 multilayer algorithms in any combination
Conveyor type Antistatic PU
PVS enabled yes
Reporting data Batch, Shift
Data management USB, Ethernet, TRACS

*Higher weight capacity available depending on the packed item.

Lead-free components.

Detection of metals, bones, glass and dense plastics with automatic rejection of contaminated products.

The Loma CW3 Checkweigher is compliant with OIML R51 and MID Directive (EC TAC)

Single touchscreen for easier operation.

Simplified production processes, installation and support from one supplier, a single critical control point.

Data entry and export via USB in compliance with HACCP and Retail standards.

Multi-level password protection for secure login and to ensure product traceability (CFR21 part11).
