Loma CW3 Heavy Weight Checkweigher


Loma CW3 Heavy Weight checkweigher is the perfect solution for weighing bags and boxes up to 60 kg

Why choose Loma CW3 Heavy Weight checkweigher

compliance icon

Choosing the Loma CW3 Heavy Weight checkweigher gives you access to all the benefits of inline weight control. The unit makes it possible to verify that the weight matches what is stated on the label, protect against trade fraud, identify incomplete packages, and avoid recalls of non-compliant products. In addition, the line will become more efficient, thereby increasing profitability.

data input icon

The Loma CW3 Heavy Weight checkweigher is designed to operate in harsh environments, where washing and cleaning are part of the daily routine. Thanks to the included technology, it can store up to 500 product calibration details, enabling instant product changeover via the multiproduct menu.

product types icon

Non-compliant products are rejected and collected in containers, and waste can be sorted according to the deviation identified by the system. The system is responsible for continuous monitoring of the average weight to ensure compliance with legal requirements.

Technical information

Loma checkweighers guarantee maximum integration in combined systems, which can be used for metal detection or X-ray inspection together with dynamic weight control. Everything happens with maximum safety thanks to a stainless steel cabinet that prevents contact with moving parts, as well as doors with an electronic safety system that stops operation when opened to avoid accidents.

“Designed to survive”, Loma checkweighers have an extremely intuitive user interface, and the colored touchscreen ensures excellent readability and very easy operation for the operator. The system gives the user access only to the menu items relevant to his/her role, and records all performed actions.

Weighing range (g) according to MID/R51 3 – 50
Weighing range (g) not according to MID/R51 0.5 – 60
Accuracy (g) 1.14
Materials 304 stainless steel
Height options 750, 800, 850, 900, 1100mm +/- 50mm
Max. speed 54m/min
Voltage 110 or 230V/1ph / N+E 50 or 60Hz
Air pressure 5 to 8 bar 72-116 Psi
Temperature range 0 to 40°C
IP rating IP65
Conveyor width 500mm
Conveyor type Antistatic PU
Data reports Batch, Shift
Data management USB, Ethernet, Enet, TRACS

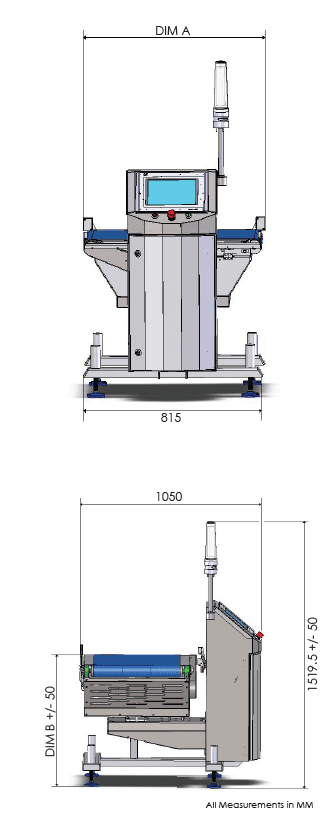

Technical Specifications Loma CW3 Heavy Weight Checkweigher

The checkweigher comes with two output signals suitable for activating third-party reject systems. Alternatively, a reject station is available with the following option:

  • Automatic pusher
