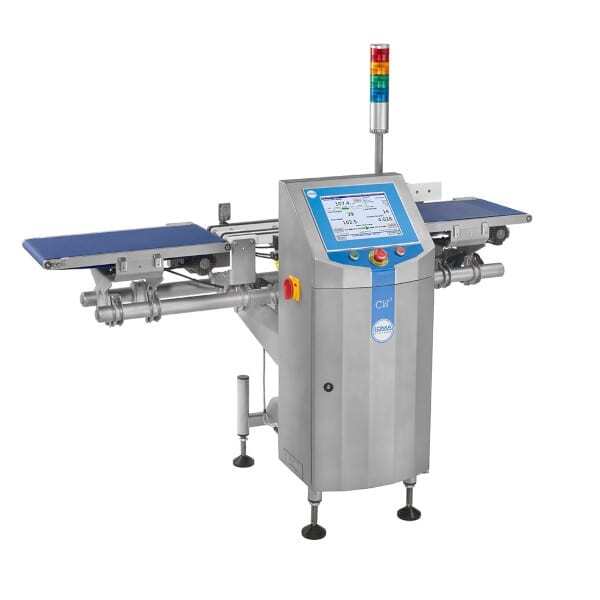

Loma CW3 Draglink Checkweigher


The weight verification system for cans, jars, and bottles

Why Choose the Loma CW3 Draglink Checkweigher

data input icon

Thanks to the user-friendly graphical interface, simply input the product details, run it through a few times, and the Loma CW3 Draglink checkweigher is ready to verify the weight.

product type icon

With its highly reliable load cell technology, the Loma CW3 Draglink weight verification system ensures precise weighing, effectively preventing overfilled packaging.

goal achievement icon

The Loma CW3 Draglink checkweigher can store up to 500 product calibration settings, enabling fast product changes via the multi-product menu.

Technical Information

Weight range (g) compliant with MID/R51 50 – 6000
Weight range (g) non-compliant with MID/R51 20 – 6000
Accuracy level (g) 0.24
Construction materials 304 Stainless steel
Height options 750, 800, 850, 900, 1100mm +/- 50mm
Maximum speed 115m/min
Voltage 110 or 230V/1ph / N+E 50 or 60Hz
Air supply 5 to 8 bar 72-116 Psi
Temperature range 0 to 40°C
IP rating IP65
Conveyor width 200/300 mm (depending on model)
Conveyor type Antistatic PU
Data reporting Batch, Shift
Data management USB, Ethernet, Enet, TRACS

Technical Features Loma CW3 Draglink Checkweigher

The checkweigher comes with two output signals suitable for activating third-party reject devices. Alternatively, a reject station can be provided with the following options:

  • Pneumatic pusher
  • Air jet reject
  • Diverter
