Loma CW3 Checkweigher


The perfect solution for precise weighing of food products up to 12 kg

Why Choose the Loma CW3 Checkweigher

goal icon

The system includes one or more reject mechanisms, depending on whether rejection needs to be categorized by type of error. The selection of the pusher or rejector model is based on the product type.

data input icon

The color touchscreen offers excellent readability and the intuitive interface makes operation extremely easy. Users can only access menu options relevant to their role and the system logs all activity.

compliance icon

A complete setup can be configured with all the necessary functions and devices to meet quality standards required by Marks & Spencer, BRC, IFS, and Retail/GDO compliance.

Technical Information

Models

Weight range (g) MID/R51 compliant 400UL 1500UL 6000M 12000HW
Weight range (g) non-compliant with MID/R51 5 – 400 10 – 1500 20 – 6000 125 – 6000
Accuracy level (g) 0.12 0.18 0.30 0.48
Construction materials 304 stainless steel
Height options 750,800,850,900,950mm +/- 50mm
Max speed 115m/min
Voltage 110 or 230V/1ph / N+E 50 or 60Hz
Air from 5 to 8 bar 72-116 Psi
Temperature range from 0 to 40°C
IP rating IP69
Conveyor size 9x15mm/200/300/400mm (depending on model)
Conveyor type Anti-static PU
Data reporting Batch, Shift
Data management USB, Ethernet, Enet, TRACS

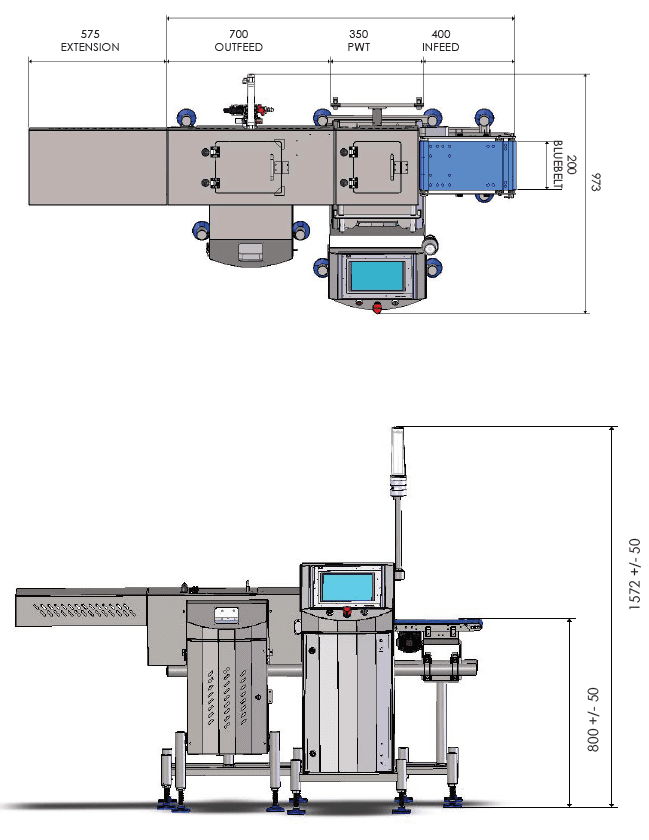

Technical Specs Checkweigher Loma CW3

The Loma CW3 checkweigher includes two output signals that can activate third-party rejection systems. Alternatively, it can be supplied with a dedicated reject station offering the following options:

  • Pneumatic pusher
  • Air jet rejector
  • Diverter
  • Lift flap conveyor
