Domino X630i – Digital single-pass printer
Digital single-pass solution for corrugated board

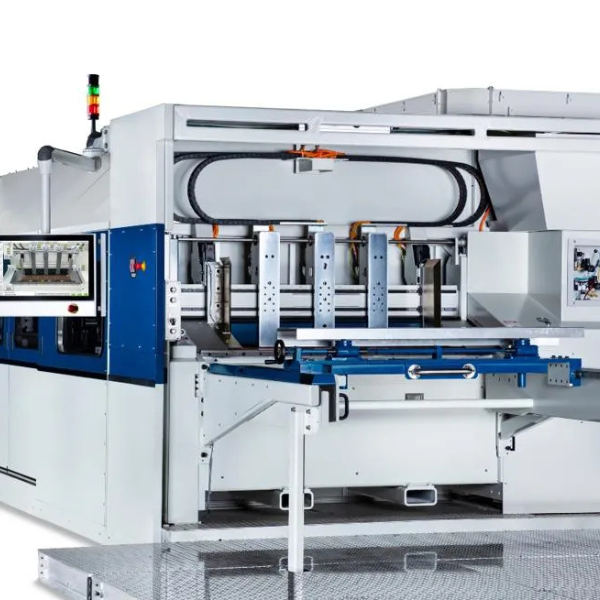

Domino X630i is a high-performance digital single-pass printer, developed specifically for printing on corrugated board. It prints at up to 75 meters per minute with a resolution of 600 x 600 dpi and handles sheet sizes up to 1,600 x 3,000 mm, equivalent to up to 4,500 sheets per hour. The machine is equipped with a servo-driven feeder, vacuum-based sheet transport as well as flexible delivery units for both stack and bundle output.
The X630i is based on Domino’s proven Generation 6 inkjet platform, which combines over 40 years of experience with advanced technology. The integrated i-Tech CleanCap function ensures automatic cleaning and protection of the print heads, reducing the need for manual maintenance. The continuous ink circulation via i-Tech ActiFlow improves print quality, while i-Tech StitchLink ensures precise alignment of the print heads for consistent and detailed results.
The printer uses Domino AQ95 ink with the unique i-Tech PolyM formulation, enabling high quality on both coated and uncoated corrugated board – completely without the use of primer or separate bonding agent. Domino X630i is ideal for companies seeking a future-proof and flexible solution for digital corrugated printing.
Why choose Domino X630i?
Automated cleaning and capping station for print heads ensures constant and reliable nozzle performance, reduced start-up time and less need for operator intervention.
Micro motor controller technology guarantees that all print heads are positioned precisely and calibrated to print as one unit, enabling seamless printing across the full sheet width.
AQ95 CMYK ink set is suitable for many non-direct food packaging applications and complies with the EuPIA exclusion policy.
Technical Information
| Press modules | Feeder, Transfer In, Plate cleaning, Plate inspection, Print section, Transfer Out, Dryer, Overprint varnish section |
| Technology | Piezo Drop on Demand inkjet, Infrared drying |
| Print speed | 50 m/min (164 ft/min) – 75 m/min (246 ft/min) |
| Image resolution | 600 dpi native plus 3 gray levels |
| Sheet size range | 508 x 762 to 1,600 x 3,000 mm (20 x 30 to 63 x 118 inches) |
| Maximum image size | Print area max. 3000 mm (118″) x 1345 mm (53″) |
| Media types | Coated, Uncoated & Kraft. Board thickness: E to BC flute |
| Ink | Cyan, Magenta, Yellow, Black. Water-based inks. EU/FDA, Nestlé, Swiss compliant |
| Workflow | Esko DFE, Colour Pilot, Domino ScreenPro HS. Functions: step & repeat, colour management, cropping, edge-to-edge print, saturation and hot folders |
| File formats | PDF versions: 1.3; 1.4; 1.5; 1.6; 2.0; PDF/X-1a and PDF/X-3 as well as PDF/VT |
| Environment | X630i is fully enclosed with temperature and dust control |

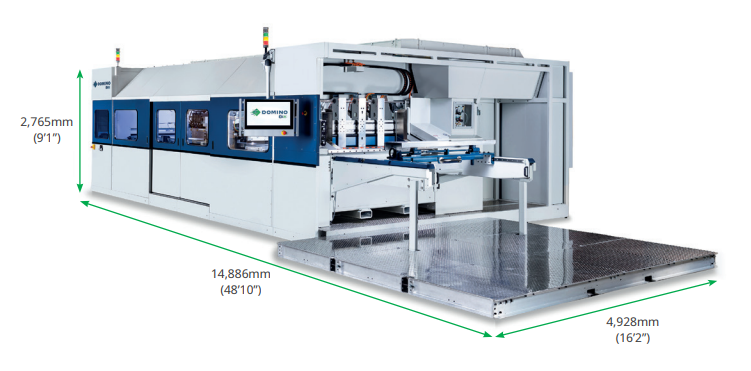

| Dimensions | Length: 14,886 mm (48’10”) Width: 4,928 mm (16’2”) Height: 2,765 mm (9’1”) |
| Weight | Feeder: 5000 kg (11,023 lbs) Transfer In: 5455 kg (12,026 lbs) Print section: 7275 kg (16,034 lbs) Transfer Out: 5000 kg (11,023 lbs) Dryer: 3653 kg (8,061 lbs) Overprint varnish section: 1814 kg (4000 lbs) Total: 28,178 kg (62,122 lbs) |
| Services | Electrical: 440-480 VAC / 60Hz / 3-phase Air: 100 psi (8.0 Bar) minimum for actuators (minimum SCFM/airflow required) No continuous air or cooling water supply required Water: Not required Drain: Required for HVAC unit condensate |
